Klickfix photovoltaic mounting on sheet roof with standing seam (Kopie)
VAT is not applicable & plus shipping costs
For one module you need (1x basic set) and for each additional module of the same series you need expansion sets! Per set you only need (1x basic set)!
Example for modules in the same row: 1 module = 1 basic set / 2 modules = 1 basic set + 1 expansion set / 3 modules = 1 basic set + 2 expansion sets etc.
This assembly set is used for mounting photovoltaic systems on sloping roofs made of sheet metal with standing sheet metal seam.
Properties
Lightweight, robust and easy to assemble
Maximum stability of the construction by 4 mounting clamps per module
Safe and durable assembly thanks to the highest quality corrosion-free materials made of stainless steel and aluminium

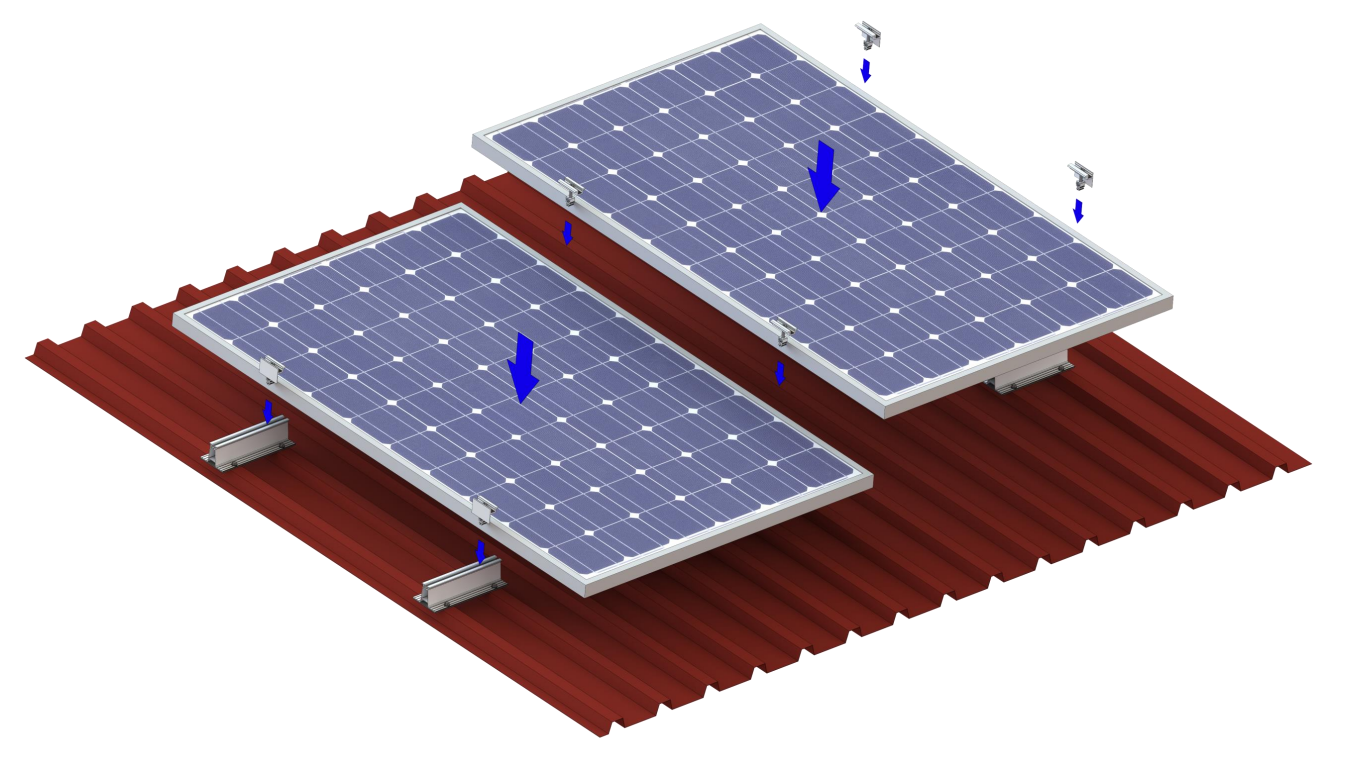

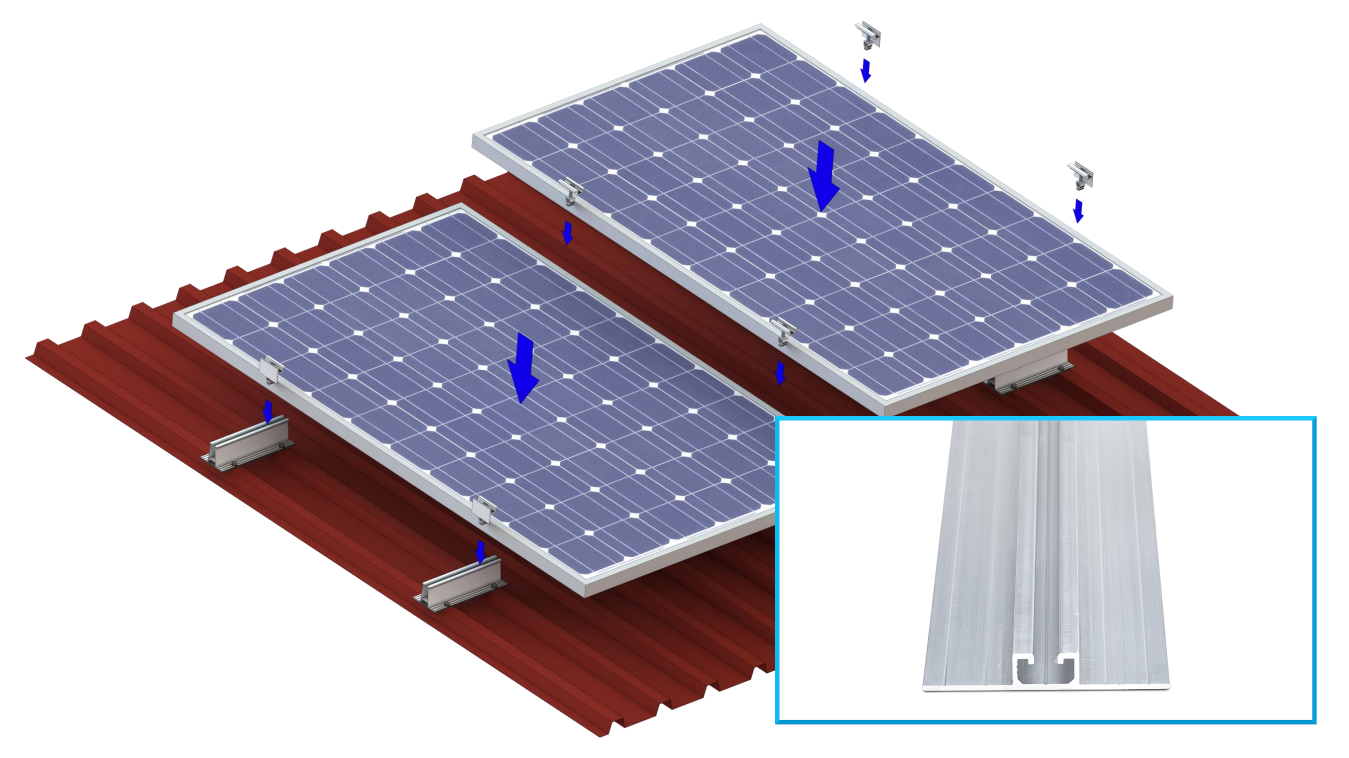

Aufbauanleitung:
Verschraubung der Modulklemmen:

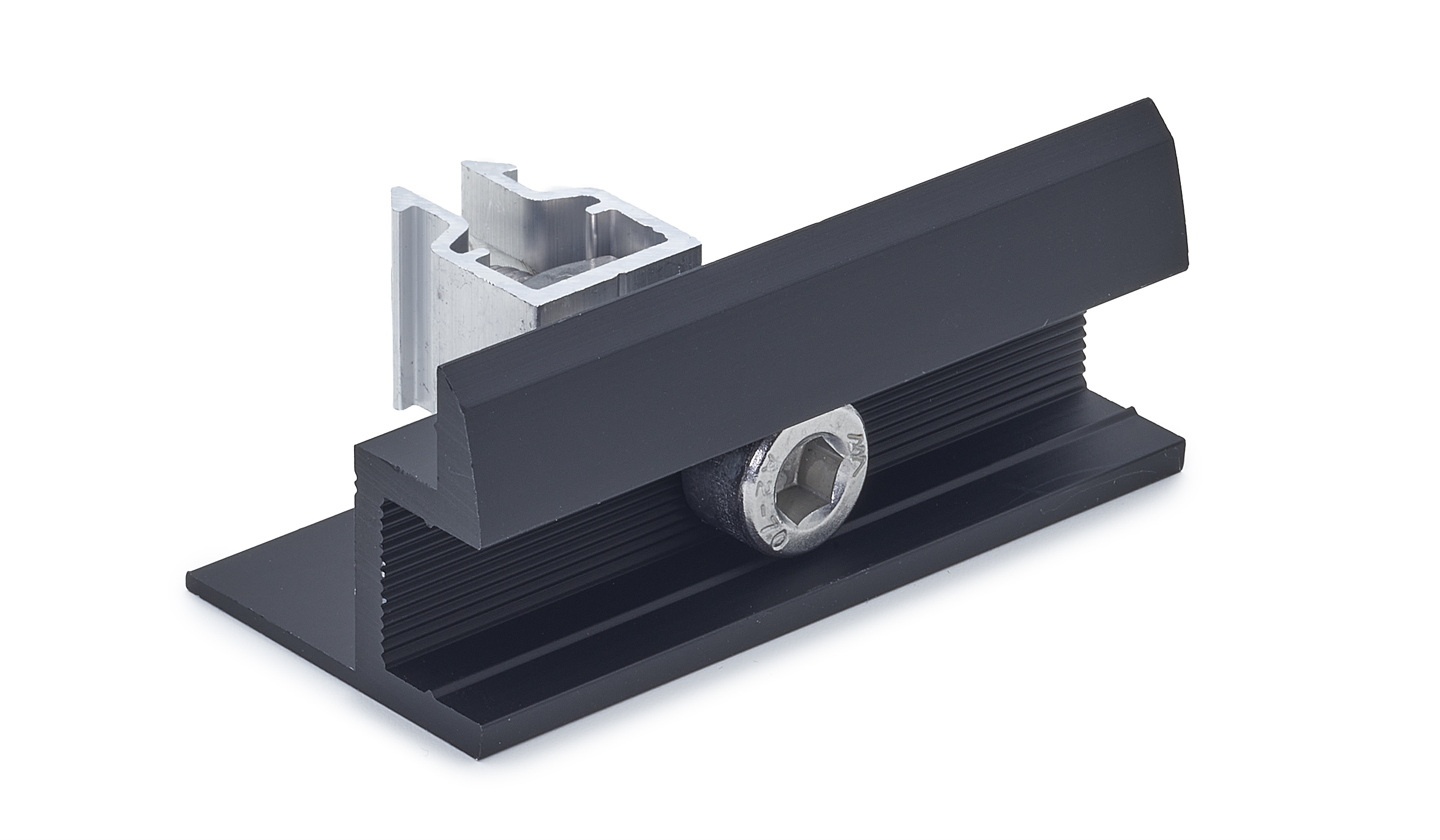

Klemmung der PV-Module hochkant (ENDKLEMME):

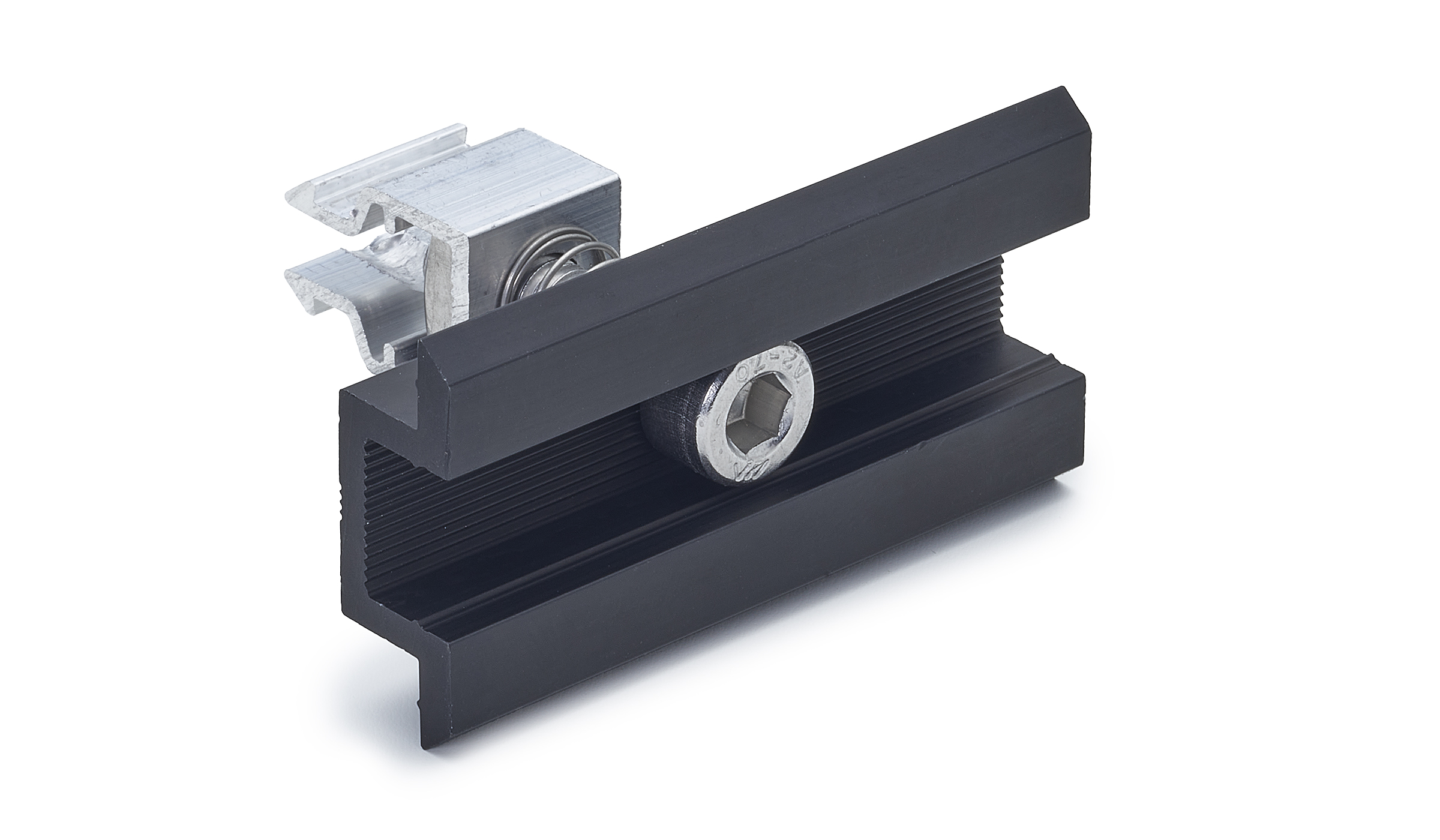

Klemmung der PV-Module hochkant (MITTELKLEMME):
Description

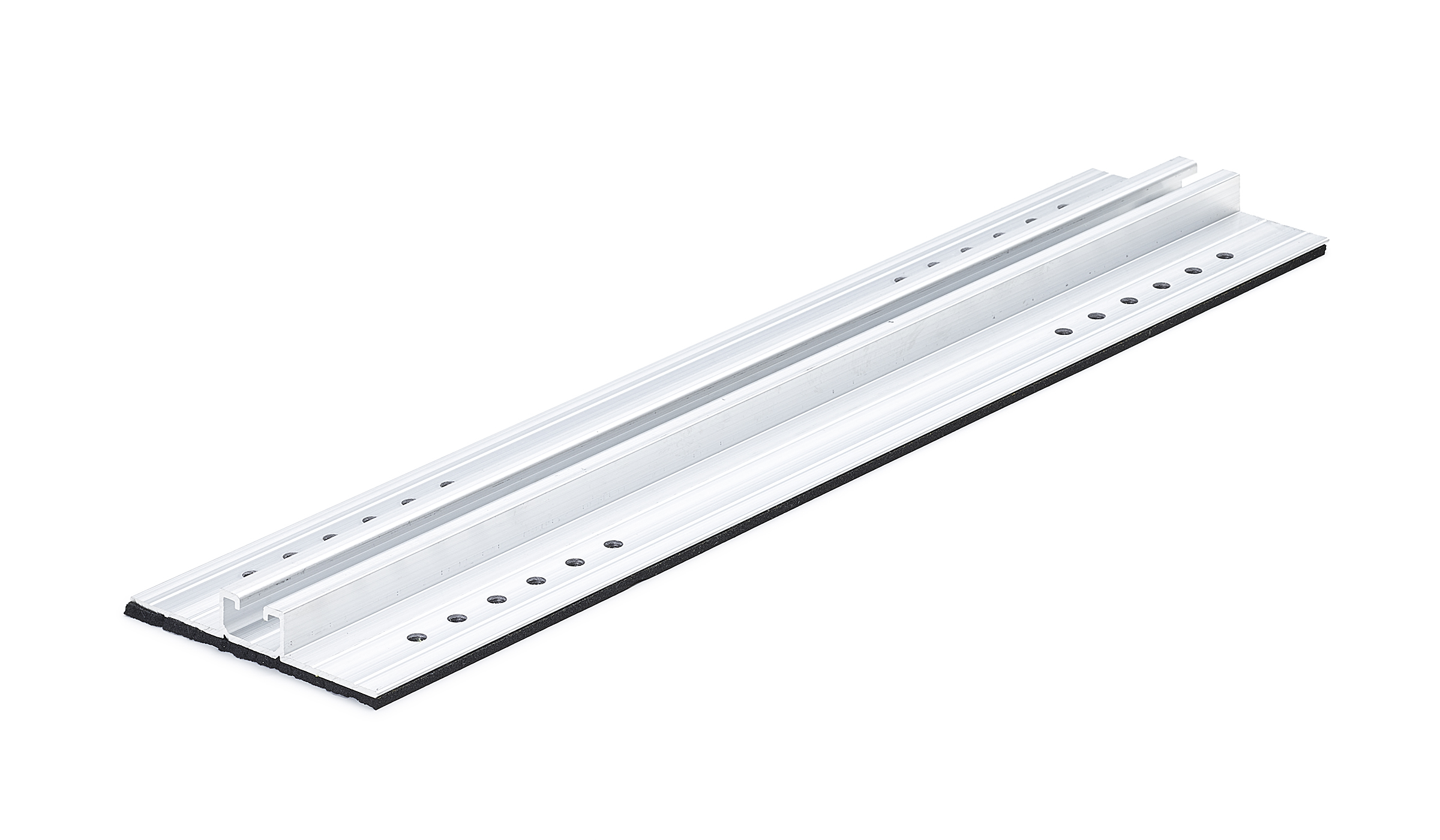

This mounting set offers a practical solution for the attachment of photovoltaic modules on sloping roofs with fixed fold. It contains all the necessary parts, including aluminum mounting rails and fixing clamps to create a safe and stable substructure and assemble the solar panels.
With the mounting clamps included in the set, the mounting rails can be securely attached to the standing fold of the sheet metal roof. This creates a stable substructure for the installation of the solar modules.
This guarantees a secure fastening and maximum stability of the assembly.
The “base (for one module)” and “expansion (from 2 modules) are available. “Base (for one module)” includes the mounting material for mounting a solar module, while “Extension (from 2 modules)” provides the mounting material for each additional solar module.
The mounting set “Basis” (for a solar module) and the mounting set “Extension” (for from 2 modules) are available. The “Base” set includes the mounting material for installing a solar module, while the “Extension” set provides the material for each additional module.
Reformulated example 1: If you are mounting 5 solar modules in a row (5×1), you need a basic assembly set and 4 expansion assembly sets.
Yes, that’s right. For a double-row installation of 8 solar modules, you would have to order 2x the basic mounting set and 6x the extension mounting set.
Content (KLICKFIX installation set sheet metal roof with standing seam):
